  C & Ku-Band LNBs & LNBF's
C-Band LNB's C-Band LNBF's C-Band 5G Filter's Ku-Band LNB's Ku-Band LNBF's

Click on Above Links for Different LNB's and LNBF's


NORSAT C-Band LNB's

5150F 5100F 3220F 3120F 3200-BPF-6

Click on Above Links for Different LNB's and Specs.

Norsat 5150F PLL C-Band Digital +/- 150KHz LNB
$125.00 each

Plus #15.00 Shipping within the Cont. 48 United States

Input Frequency 3.4 to 4.2 GHz
Noise Figure Options 15° K
L. O. Stability Options ( Over Temperature ) 1.0 ppm ± 150 KHz
L. O. Phase Noise 65 dBc / Hz @ 1 KHz
Conversion Gain 62 dB
Output P1dB 10 dBm
Power Requirements +12 to +24 V supplied through center conductor of IF cable
Input VSWR 2.5 : 1
Output VSWR 2.5 : 1
Current Drain 250 mA
L.O. Frequency (GHz) 5.15
Output Frequency (MHz) 950 to 1750
Temperature Range -40°C to +60°C
Dimensions 190 (L) x 115 (W) x 78 (H) mm
(7.1 x 4.0 x 2.8 in)

Norsat 5150F PLL C-Band Digital +/- 150KHz LNB
$125.00 each

Plus #15.00 Shipping within the Cont. 48 United States

$140.00 Includes Shipping within the 48 Cont. United States

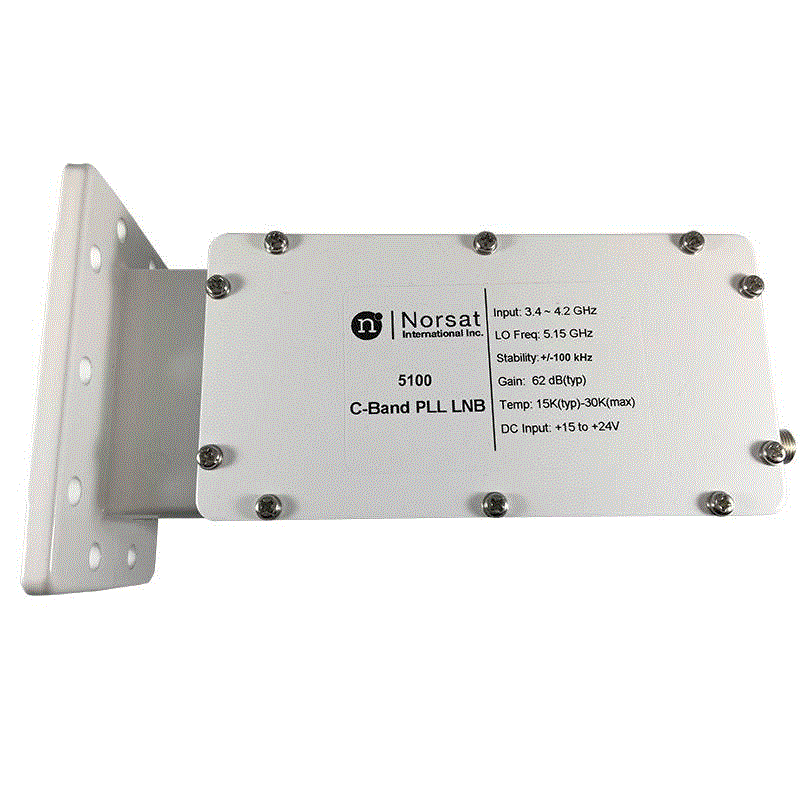

Norsat 5100F PLL C-Band Digital +/- 100KHz LNB
$155.00 each

Plus Shipping $15.00 within the 48 Cont. United States

Input Frequency 3.4 to 4.2 GHz
Noise Figure Options 15° K
L. O. Stability Options ( Over Temperature ) 1.0 ppm ± 100 KHz
L. O. Phase Noise 65 dBc / Hz @ 1 KHz
Conversion Gain 62 dB
Output P1dB 10 dBm
Power Requirements +12 to +24 V supplied through center conductor of IF cable
Input VSWR 2.5 : 1
Output VSWR 2.5 : 1
Current Drain 250 mA
L.O. Frequency (GHz) 5.15
Output Frequency (MHz) 950 to 1750
Temperature Range -40°C to +60°C
Dimensions 190 (L) x 115 (W) x 78 (H) mm
(7.1 x 4.0 x 2.8 in)

Norsat 5100F PLL C-Band Digital +/- 100KHz LNB
$155.00 each

Plus Shipping $15.00 within the 48 Cont. United States

$170.00 Includes Shipping within the 48 Cont. United States


High End Commercial Norsat 3220F PLL C-Band Digital +/- 10KHz LNB
$240.00 each

Plus $15.00 Shipping in the Cont. United States



Noise temperature 20 K
L.O. stability
(over temperature excl offset)
±10 kHz
Phase noise (SSB) -80 dBc/Hz at 1 kHz
-85 dBc/Hz at 10 kHz
-95 dBc/Hz at 100 kHz
Input VSWR 2.2 : 1
Output VSWR 2.2 : 1
Conversion gain 62 dB
Output P1dB 9 dBm
Power requirements +12 to +24 V supplied through center conductor of IF cable
Current drain 250 mA
Input Waveguide CPR 229G
Dimensions 180 (L) x 100 (W) x 70 (H) mm (7.1 x 4.0 x 2.8 in)
Weight 425 g / 15 oz
Temperature Range -40°C to +60°C
Input frequency (GHz) 3.625 to 4.20
L.O. frequency (GHz) 5.15
Output frequency (MHz) 950 to 1750

High End Commercial Norsat 3220F PLL C-Band Digital +/- 10KHz LNB
$240.00 each

Plus $15.00 Shipping in the Cont. United States

$255.00 Includes Shipping within the 48 Cont. United States


High End Commercial Norsat 3120F PLL C-Band Digital +/- 5KHz LNB
$255.00 each

Plus $15.00 Shipping in the Cont. United States

Noise temperature 20 K
L.O. stability
(over temperature excl offset)
±5 kHz
Phase noise (SSB) -80 dBc/Hz at 1 kHz
-85 dBc/Hz at 10 kHz
-95 dBc/Hz at 100 kHz
Input VSWR 2.2 : 1
Output VSWR 2.2 : 1
Conversion gain 62 dB
Output P1dB 9 dBm
Power requirements +12 to +24 V supplied through center conductor of IF cable
Current drain 250 mA
Input Waveguide CPR 229G
Dimensions 180 (L) x 100 (W) x 70 (H) mm (7.1 x 4.0 x 2.8 in)
Weight 425 g / 15 oz
Temperature Range -40°C to +60°C
Input frequency (GHz) 3.625 to 4.20
L.O. frequency (GHz) 5.15
Output frequency (MHz) 950 to 1750

High End Commercial Norsat 3120F PLL C-Band Digital +/- 5KHz LNB
$255.00 each

Plus $15.00 Shipping in the Cont. United States

$270.00 Includes Shipping within the 48 Cont. United States


Norsat 3200F-BPF-6, 4.00 - 4.20 GHz C-Band 5G Interference LNB +/-25 KHz LNB
$675.00 each

Plus $20.00 Shipping in the Cont. United States

Norsat 3200F-BPF-6 SPECIFICATIONS

Input Frequency 4.00 - 4.20 GHz
L.O. Frequency 5.15 GHz
IF Frequency 950 - 1150 MHz
Rejection Range < 3.9 GHz and >4.8 GHz
Noise Temperature 37K typ., 60K max. at room temp.@CF
Phase Noise (SSB) max. -80 dBc/Hz at 1 kHz
-85 dBc/Hz at 10 kHz
-95 dBc/Hz at 100 kHz
Input VSWR 2.2:1 max.
Output VSWR 2.5:1 max.
Gain 60 dB typ., 55 dB min., 70 dB max.
Gain Flatness (over full band) = 6 dB p-p
Output P1dB +9 dBm min.
Interference Rejection Signal -25 dBm max. with no degradation
DC Power +12V to +24V DC
Current 400 mA max.
Input (waterproof) CPR229G waveguide grooved
Output (waterproof) F-Connector 75 Ohm
Dimensions 159 x 98.5 x 70mm (6.26 x 3.88 x 2.75 in)
Weight 500g (17.64 oz)
Storage Temperature - 50 to + 70°C

Norsat 3200F-BPF-6, 4.00 - 4.20 GHz C-Band 5G Interference LNB +/-25 KHz LNB
$675.00 each

Plus $20.00 Shipping in the Cont. United States

$695.00 Includes Shipping within the 48 Cont. United States

Back to Top


C-Band LNBF's

PF9600W PANSAT Wideband C-Band LNBF
$48.00 each
$58.00 Includes Shipping within the 48 Cont. United States



Input Frequency Range : 3.4 ~ 4.2 GHz
Output Frequency Range : 950 ~ 1750 MH
L.O. & Stability (Over Temp.) : 5.15 GHz +/- 2MHz
Noise Temp.(@ + 25°C) : 17 degree K max.
Input VSWR : 2.5 : 1 Typ.
Image Rejection : 40 dBc Min.
Conversion Gain : 65 dB Typ.
Output VSWR : 2 : 1 Typ.
Gain Flatness : 6 dBp-p Max.
Gain Ripple(@per Channel) : +/- 0.75dB Max.
P1dB Gain Compression Point : +5 dBm Max
Output Impedance : 75 O
Leakage(@ Input Port) : -60 dBm Max.
Phase Noise : -80 dBc/Hz(@ 10KHz), -95 dBc/Hz(@ 100KHz), -110 dBc/Hz(@ 1 MHz)
Power Supply : +12 to +24V DC
Requires Current : 150 mA Max.
Operating Temperature : -30°C ~ +60°C
Storage temperature : -40°C ~ +80°C
Relative Humidity : 0% ~ 95% RH
Input Waveguide flange : WR-229
IF Output Connector : F-Type Female
Weight : 510g

PF9600W PANSAT Wideband C-Band LNBF
$48.00 each
$58.00 Includes Shipping within the 48 Cont. United States


PF9650S PANSAT Stacked C-Band LNBF
$59.99 each
$69.99 Includes Shipping within the 48 Cont. United States

This LNBF is the perfect solution for those Free-To-Air Satellite Installations where you have only 1 cable, but want to use Multiple Receivers.
You can bring the one cable inside and connect to a High Frequency Single Port Power Passive Splitter and then feed Multiple Receivers and
Set the LNBF setting in the Antenna Setup Menu to 5150/5750 or OCS or One Cable System and then all of the connected receivers can select
Vertical or Horizontal independently. You just need to make for sure that the receiver you are using offers these settings in the menu.

Input Frequency Range : 3.7 ~ 4.2 GHz
Output Frequency Range : 950 ~ 1450 MHz / 1550 ~ 2050MHz
LO. Frequency Range : 5.15 GHz +/- 2MHz, 5.75 GHz +/- 2MHz
Noise Temp.(@ + 25°C) : 35°K max.
Input VSWR : 2.5 : 1 Typ.
Image Rejection : 40 dBc Min.
Conversion Gain : 65 dB Typ.
Output VSWR : 2 : 1 Typ.
Gain Flatness : 6 dBp-p Max.
Gain Ripple(@per Channel) : +/- 0.75dB Max.
P1dB Gain Compression Point : +5 dBm Max
Output Impedance : 75 O
Leakage(@ Input Port) : -60 dBm Max.
Phase Noise : -80 dBc/Hz(@ 10KHz), -95 dBc/Hz(@ 100KHz), -110 dBc/Hz(@ 1 MHz)
Power Supply : +12 to +24V DC
Requires Current : 150 mA Max.
Operating Temperature : -30°C ~ +60°C
Storage temperature : -40°C ~ +80°C
Relative Humidity : 0% ~ 95% RH
Input Waveguide flange : WR-229
IF Output Connector : F-Type Female
Weight : 520g

PF9650S PANSAT Stacked C-Band LNBF
$59.99 each
$69.99 Includes Shipping within the 48 Cont. United States

Back to Top


C-Band 5G Filter and LNB/5G Filter Combo

ALGA C-Band 5G "Blue" Filter, 4.0-4.2 GHz Band Pass

ALGA C-Band 5G "Blue" Filter, 4.0-4.2 GHz Band Pass
$375.00 each

Plus $20.00 Shipping in the Cont. United States

$395.00 Includes Shipping within the 48 Cont. United States



Add the Hardware Kit for $28.00 with No Additional Shipping and Handling within the 48 Cont. United States
This is a Package of 20 Bolts, Nuts and Washers and also comes with an Extra set of Gaskets.

$28.00


Norsat 3200F-BPF-6, 4.00 - 4.20 GHz C-Band 5G Interference LNB +/-25 KHz LNB
$675.00 each

Plus $20.00 Shipping in the Cont. United States

Norsat 3200F-BPF-6 SPECIFICATIONS

Input Frequency 4.00 - 4.20 GHz
L.O. Frequency 5.15 GHz
IF Frequency 950 - 1150 MHz
Rejection Range < 3.9 GHz and >4.8 GHz
Noise Temperature 37K typ., 60K max. at room temp.@CF
Phase Noise (SSB) max. -80 dBc/Hz at 1 kHz
-85 dBc/Hz at 10 kHz
-95 dBc/Hz at 100 kHz
Input VSWR 2.2:1 max.
Output VSWR 2.5:1 max.
Gain 60 dB typ., 55 dB min., 70 dB max.
Gain Flatness (over full band) = 6 dB p-p
Output P1dB +9 dBm min.
Interference Rejection Signal -25 dBm max. with no degradation
DC Power +12V to +24V DC
Current 400 mA max.
Input (waterproof) CPR229G waveguide grooved
Output (waterproof) F-Connector 75 Ohm
Dimensions 159 x 98.5 x 70mm (6.26 x 3.88 x 2.75 in)
Weight 500g (17.64 oz)
Storage Temperature - 50 to + 70°C

Norsat 3200F-BPF-6, 4.00 - 4.20 GHz C-Band 5G Interference LNB +/-25 KHz LNB
$675.00 each

Plus $20.00 Shipping in the Cont. United States

$695.00 Includes Shipping within the 48 Cont. United States

Add the Hardware Kit for $28.00 with No Additional Shipping and Handling within the 48 Cont. United States
This is a Package of 20 Bolts, Nuts and Washers and also comes with an Extra set of Gaskets.

$28.00

Back to Top


Ku-Band LNB's

ASC511 DMSI 4107AF NORSAT 1207HA NORSAT

Click on Above Links for Different LNB's and Specs.

Excellent Quality at an Outstanding Price!

DMS International ASC511 Ku-Band LNB - Noise Figure 0.5dB +/-500KHz Stability - $40.00 each
Plus Shipping

$50.00 Includes Shipping within the 48 Cont. United States
Actual price is 40.00 plus 10.00 Shipping & Handling within the 48 Cont. United States


Professional Grade Ku-Band PLL LNB for Rectangular Wave Guide / Linear Polarity
Norsat PLL 0.7 Ku #4107AF - $130.00 each
Plus $15.00 Shipping within the 48 Cont. United States

4000 Spec. Sheet .pdf

KEY SPECIFICATIONS
Band Ku-Band
Input Frequency Band 1 Ku-Band: 11.70 - 12.20 GHz
Lo Stability ±150 kHz
Lo Type PLL
Noise Figure 0.7 dB
Output Frequency 1 L-Band: 950 - 1450 MHz
Product Family 4000A Series

RF SPECIFICATIONS
Conversion Gain 60 dB typ
Input VSWR 2.5 : 1
Lo Frequency 1 10.75 GHz
Output VSWR 2.5 : 1

INTERFACE SPECIFICATIONS
RF Input Connector WR-75 waveguide grooved
RF Output Connector F-75 Ohm

ENVIRONMENTAL SPECIFICATIONS
Temperature Operational -40 to +60°C
Temperature Storage -40 to +80°C
Weight 200g

PHYSICAL SPECIFICATIONS
Dimensions (LxWxH) 85 x 43 x 43 mm

Norsat PLL 0.7 Ku #4107AF - $130.00 each
Plus $15.00 Shipping within the 48 Cont. United States

$145.00 Includes Shipping within the 48 Cont. United States


High End Commercial Ku-Band PLL LNB for Rectangular Wave Guide / Linear Polarity
Norsat 0.7 Ku #1207HA - $240.00 each
Plus $15.00 Shipping within the 48 Cont. United States

1000 Spec. Sheet .pdf

KEY SPECIFICATIONS
Band Ku-Band
Input Frequency Band 1 Ku-Band: 11.70 - 12.20 GHz
Lo Stability +/- 25 kHz
Lo Type PLL
Noise Figure 0.7 dB
Output Frequency 1 L-Band: 950 - 1450 MHz
Product Family 1000HA Series

RF SPECIFICATIONS
Conversion Gain 60 dB typ
Input VSWR 2.5 : 1
Lo Frequency 1 10.75 GHz
Output VSWR 2.2 : 1

INTERFACE SPECIFICATIONS
RF Input Connector WR-75 waveguide grooved
RF Output Connector F-75 Ohm

ENVIRONMENTAL SPECIFICATIONS
Temperature Operational -40 to +60°C
Temperature Storage -40 to +80°C
Weight 300g

PHYSICAL SPECIFICATIONS
Dimensions (LxWxH) 110 x 42 x 42 mm

High End Commercial Ku-Band PLL LNB for Rectangular Wave Guide / Linear Polarity
Norsat 0.7 Ku #1207HA - $240.00 each
Plus Shipping

$255.00 Includes Shipping within the 48 Cont. United States

Back to Top


Ku-Band LNBF's

OCT GOLD 4K
Octagon
Universal / Single Outlet
OSLO GREEN HQ
Octagon
Universal / Single Outlet
PLL322S-2
Avenger

PLL Universal / Dual Outlet
KSC322-2
Avenger

Universal / Dual Outlet
KSC321S-2
Avenger

Universal / Single Outlet
JSC-MB4-2
DMS International

OCTAGON - OCT GOLD 4K LNBF - Anadol Gold Line Single 4K UHD 0.1db LNBF

Universal 9750-10600 - Noise Figure: 0.1db - Input Frequency: 10.7 to 12.75GHz - Linear H/V Polarity - Single Output LNBF

$19.00 Plus $10.00 Shipping within the 48 Cont. United States

"Anadol Gold Line Single LNB 0.1 dB 1 Participants + 2 Gold-Plated F-Plugs with LNB Weatherproof Cap"The new Anadol Single LNB with only 0.1dB noise figure, gold-plated connector, low power consumption, excellent signal quality, and UV-resistant weatherproof housing is characterized by Top Quality.

This LNB is extremely cold and heat resistant and allows the signal reception of a satellite and the distribution to a terminal (Receiver) with one Tuner.

Features:
- Single LNB - 1 Participant
- Gold-Plated Connections
- Low Energy Consumption
- Suitable for 4K/ UHD, FULL HD, and SD reception
- Excellent Workmanship
- Low Noise Figure
- Low Phase Noise
- High Cross Polarization Isolation
- High-Frequency Stability
- With Weatherproof Housing
- With Gold Plated F-Connectors for Free
- Waterproof

Technical Info:
- Input Frequency Range: 10.7 ~ 11.7 GHz / 11.7 ~ 12.75 GHz
- Output Frequency Range: 950 ~ 1950 MHz / 1100 ~ 2150 MHz
- Outputs: 1 (1x direct receiver connection)
- LO Frequency: 9.75 / 10.6 GHz
- Noise Figure 0.1dB (typical)
- Operating Temperature -30 °C ~ 60 °COCTAGON - OCT GOLD 4K LNBF - Anadol Gold Line Single 4K UHD 0.1db LNBF


OCTAGON - OCT GOLD 4K LNBF - Anadol Gold Line Single 4K UHD 0.1db LNBF

$19.00 Plus $10.00 for Shipping within the 48 Cont. United States


OCTAGON - OSLG Green HQ PLL Single 0.1db LNBF

Universal 9750-10600 - Noise Figure: 0.1db - PLL Technology - Input Frequency: 10.7 to 12.75GHz - Linear H/V Polarity - Single Output LNBF

$19.00 Plus $10.00 Shipping within the 48 Cont. United States

This branded LNBF from Octagon is suitable for receiving Analog and Digital Channels from any satellite.
The LNBF is characterized by a minimal and stable noise figure of 0.1db, excellent workmanship and a UV-resistant weather protection housing.

Model: OSLO Green HQ PLL
Excellent noise figure up to 0.1 db
Very low power consumption
Extremely cold and heat resistant
Very high polarization decoupling
High frequency stability
1 Year Warranty
Weather protection
DVB-S2 compatible
Feed diameter 40mm
Freq. 10.70 - 12.75 GHz
LO 9.75 / 10.6GHz
Gain: 60~65db
PLL technology

OCTAGON - OSLG Green HQ PLL Single 0.1db LNBF

$19.00 Plus $10.00 Shipping within the 48 Cont. United States


Avenger PLL322S-2 PLL 0.1db Ku Universal LNBF

Universal 9750-10600 - Noise Figure: 0.1db - PLL Technology - Input Frequency: 10.7 to 12.75GHz - Linear H/V Polarity - Dual Output LNBF

$29.00 Plus $10.00 Shipping within the 48 Cont. United States



The Better Stability will Help to Keep those Hard to Get Signals Locked!

Specification Low Band High Band
Input Frequency Range 10.70~11.70 GHz 11.70~12.75 GHz
Output Frequency Range 950~1950 MHz 1100~2150 MHz
Reflector Type Offset
F/D Ratio 0.5 ~ 0.7
Noise Figure 0.1 dB (Typ.)
Conversion Gain 55 dB (Typ.)
Gain Flatness ±0.5dB/27 MHz
Cross POL. Isolation 20dB (Min.)
L.O. Frequency 9.75 GHz 10.60 GHz
L.O. Frequency Stability ±300 KHz (Max.) @+25°C
±500 KHz (Max.) @-40°C~+60°C
Operating Temperature -40°C ~ +60°C
L.O. Phase Noise -60dBc/Hz@ 1 KHz
-75dBc/Hz@ 10 KHz
-85dBc/Hz@ 100 KHz
Image Rejection 45 dB (Min.)
Output VSWR 2.5:1 (Max.)
Output Power Level 0 dBm (Min.)(at 1dB gain compression)
Connector Type 75O Female Connector
DC Current Consumption 150 mA
POL. Switching Voltage 11.5~14.0V @VP
16.0~19.0V @HP
22 KHz switching 0 22 KHz ±4 KHz



Avenger PLL322S-2 PLL 0.1db Ku Universal Dual Outlet LNBF

Universal 9750-10600 - Noise Figure: 0.1db - PLL Technology - Input Frequency: 10.7 to 12.75GHz - Linear H/V Polarity - Single Output LNBF

$29.00 Plus $10.00 Shipping within the 48 Cont. United States

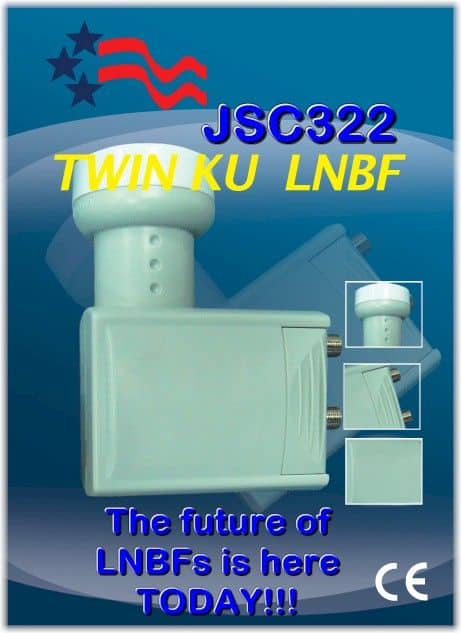

Avenger KSC322-2 0.2 dB Universal Dual Output Ku Band Satellite LNBF

Universal 9750-10600 - Noise Figure: 0.2db - Input Frequency: 10.7 to 12.75GHz - Linear H/V Polarity - Dual Output LNBF

As Low as $12.50 each with Free Shipping!

Click Below for Purchase Options
Add a Comment

Purchase 1 for $15.00 Plus $10.00 Shipping within the 48 Cont. United States
Purchase 2 for $30.00 Plus $10.00 Shipping within the 48 Cont. United States
Purchase 4 for $60.00 and Get FREE Shipping within the 48 Cont. United States
Purchase 6 for $90.00 and Get FREE Shipping within the 48 Cont. United States
Purchase 10 for $150.00 and Get FREE Shipping within the 48 Cont. United States
Purchase 20 for $250.00 and Get FREE Shipping within the 48 Cont. United States

• New Universal Dual LNB

• Brand: Avenger, Model KSC322-2

• High quality lnb, noise: 0.2db, gain 60 db

• Input 11.7-12.75 ghz, output 10.75 ghz

• Input Frequency Range: 10.70 ~ 12.75GHz

• Output Frequency Range: 950 ~ 2150MHz

• L.O.: 9.75/10.60GHz

• HDTV Approved

• Twin outputs means you can independently operate 2 receivers from this LNBF.

• Typically, You cannot use a splitter to feed two receivers from a single output LNBF. If you are adding a second receiver, you must use a dual output LNB, like this one.

• 40mm throat allow mounting it on the most popular dishes. 0.2dB noise and excellent stability means you will have great picture quality.

Avenger KSC322-2 0.2db Universal Dual Output Ku Band Satellite LNBF

As Low as $12.50 each with Free Shipping!

Click Below for Purchase Options
Add a Comment

Purchase 1 for $15.00 Plus $10.00 Shipping within the 48 Cont. United States
Purchase 2 for $30.00 Plus $10.00 Shipping within the 48 Cont. United States
Purchase 4 for $60.00 and Get FREE Shipping within the 48 Cont. United States
Purchase 6 for $90.00 and Get FREE Shipping within the 48 Cont. United States
Purchase 10 for $150.00 and Get FREE Shipping within the 48 Cont. United States
Purchase 20 for $250.00 and Get FREE Shipping within the 48 Cont. United States


Avenger KSC321-S2 0.2db Universal Single Output Ku Band Satellite LNBF

Universal 9750-10600 - Noise Figure: 0.2db - Input Frequency: 10.7 to 12.75GHz - Linear H/V Polarity - Dual Output LNBF

$15.00 each with Free Shipping!

Description

Brand new single universal single output LNB, 0.2db noise.
High gain single output Ku LNBF using 10.7 to 12.75 GHz.
Universal with 09750 and 10600 MHz LO frequencies.
Brand: Avenger.
High stability and 0.2 dB noise figure. 40mm throat size allows mounting to all popular dishes.

Specifications

Input: 10.70 ~ 12.75GHz
Output: 950 ~ 2150MHz
L.O.: 9.75/10.60GHz
Noise: 0.2dB
Gain: 60dB

Avenger KSC321-S2 0.2 dB Universal Single Output Ku Band Satellite LNBF

Universal 9750-10600 - Noise Figure: 0.2db - Input Frequency: 10.7 to 12.75GHz - Linear H/V Polarity - Dual Output LNBF

$15.00 each with Free Shipping!


CLOSE OUT SPECIAL - $5.00 EACH PLUS SHIPPING

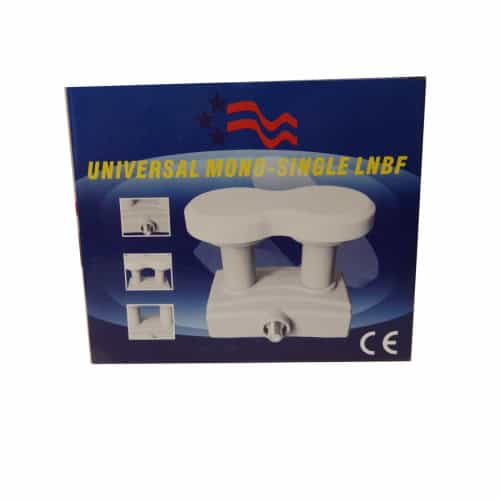

These are Brand New and In Perfect Condition - DMS International Model: JSC-MB4-2

Shipping Cost is for Within the 48 Cont. United States
1 Piece ships for $10.00 - 2 to 3 Pieces ships for $12.50 - 4 to 8 Pieces ships for $20.00

JSC-MB4-2 - Click on Down Arrow to Select Quantity

Please e-mail if need a shipping quote for other Countries - rickcaylor@aol.com

Why are these so Cheap? We are closing these out at a Super Low Price. They are Brand New! We have not had any problems with this LNBF.

Digital Ready, HDTV approved, Latest Technology provides the Best Possible Performance.

Receives Two Satellites at Four Degree Spacing. They were commonly used for Galaxy 19 (97.0 West) and SES 1 (101.0 West). This is a Universal 9750/10600 LNBF that works anywhere in the World!

The famous DMS DiSEqC Switch is built in, allowing you to deliver both signals down one coax without adding more devices in line. 0.2db noise figure, high stability and high gain insures that you get the best possible reception. Only JSC LNBs have the ability to give you the Best Reception!

Click on Images for Larger View

Specifications

Input Frequency

10.7 - 11.7 GHz and 11.7 - 12.75 GHz

Output Frequency

950 - 1950 MHz and 1100 - 2150 MHz

LO Frequency

9.75 GHz and 10.6 GHz

LO Initial Accuracy (@25°C)

± 1 MHz

LO Temperature Drift (@ -40 to 60°C)

± 3 MHz

LO Phase Noise (@ 1 KHz offset)

-60 dBc/Hz

LO Phase Noise (@ 10 KHz offset)

-80 dBc/Hz

LO Phase Noise (@ 100 KHz offset)

-100 dBc/Hz

Noise Figure

0.2 dB

Conversion Gain

50 to 62 dB

Gain Variation (over operating band)

5 dB p-p (typical)

Gain Flatness (any 27 MHz)

± 0.5 dB

Cross Pol. Isolation

20 dB (minimum) 25 dB (typical)

Image Rejection

40 dB (minimum)

P 1 dB

0 dBm (minimum)

Output VSWR

2:1

Spurious Response (@ 1700 MHz)

-58 dBm (maximum)

DC Current Consumption

180 mA (maximum)

Polarization Switching Voltage

Vertical: 10.5 to 14.2 volts
Horizontal: 15.5 to 21 volts

Band Switching

Low: 0 KHz, High 22 ± 4 KHz

LO Spurious

-45 dBm (maximum)

Operation Temperature

-40°C to 60°C

Waterproof

+60°C water for 5 minutes

Output Connector

75 ohm F type

CLOSE OUT SPECIAL - $5.00 EACH PLUS SHIPPING

These are Brand New and In Perfect Condition - DMS International Model: JSC-MB4-2

Shipping Cost is for Within the 48 Cont. United States
1 Piece ships for $10.00 - 2 to 3 Pieces ships for $12.50 - 4 to 8 Pieces ships for $20.00

JSC-MB4-2 - Click on Down Arrow to Select Quantity

Please e-mail if need a shipping quote for other Countries - rickcaylor@aol.com

Back to Top


C & Ku-Band LNBs & LNBF's

Ricks Satellite
Sales, Service & Local Installation -- C / Ku / MPEG2 Satellite Systems / DSS Accessories
316 NE Summit Drive -- Blue Springs, Missouri 64014 USA -- 816-228-1801

Contact Ricks Satellite

Major Credit/Debit Cards Accepted
Money Orders and Checks accepted also.

Ricks Satellite cannot offer for Sale any Manufacturers Extended Warranties. They must be purchased directly from the Manufacturer.

PAY PAL Address is RickCaylor@aol.com
Most Orders Shipped Same Day! UPS Tracking numbers are also provided!

In Association with Gofastmotorsports.com

Ricks Satellite Home - Satellite Receivers - USB Satellite Receivers - A/V Receivers - Satellite Systems - Satellite Dishes
Signal Meters - LNBs/LNBFs - Feed Horns - Venture Mfg. Co. Actuators & Accessories - PR1200 V-Box Dish Mover / Actuator Controller - H to H DiSEqC Ku Dish Motors
Servo Motors - Signal Combiners & Amplifiers - Multi Switches & Diplexers - DiSEqC Switches - Remotes - Coax Cable & Satellite Ribbon - Installation Accessories
Splitters - Channel Modulators & Video Senders - Off Air Antennas

Last Update; 08/29/24 01:09 PM
Copyright by
Ricks Satellite 2003-2024
