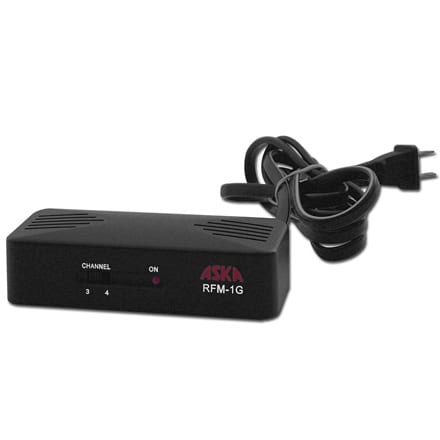

The RFM-1G is
designed to convert the Audio or Video input
signals into normal VHF TV signal for a
television set and has a built-in switch for
antenna cable input that automatically
reroutes the external input sources to the
television when a video signal is not
detected.
Outputs on
Channel 3 or 4
Video Carrier
Output - 150mV
Video input Impedance - 75 or 1K ohm
Switch-able Output Impedence - 75 Ohm
F-port Video Input Level - 1V P-P NTSC
Negative SYNC Video output level - 10dBmV
Output Channels - 3 or 4
Power Supply - 117 VAC 60Hz
Connectors - RCA jack for audio video input /
F-connector for RF output
