Item # GLOBAL STAR SYS 150 - $269.00 Includes Shipping
Within the 48 Cont. United States

Includes SX87 WL Octagon Satellite Receiver
PLL321S-2 DMSI Universal Ku-Band LNBF
90CM GEOSATpro Offset Satellite Dish
Installation Kit.

With this system you will be able to receiver approx. 100 + Free TV Stations and 50 + Free Radio Channels!
Some of the most Popluar Radio Stations include Scriptures for America, The Global Star Radio Network with many different shows, like The Power Hour, Jeff Rense, Haggman and Haggman, American Voice Radio and Republic Broadcasting Network.
Some of the most Popular TV Channels include, Russia Today World News, Press TV World News, 3ABN Network, Amazing Facts, Amazing Discoveries, The Hope Channel, LLBN, Daystar, TBN, Positv, SBN, Smile of a Child and others.

SX87 WL Octagon Satellite Receiver


Installation Kit

GEOSATpro 90CM CM Satellite Dish

"OCTAGON SX87 WL HD H.265 S2+IP Receiver Dual Core (2x800MHz) ARM Cortex-A7 Dual CPU Multimedia Multistream Black"

With the new SX87 WL HD H.265 S2+IP you get a multimedia box with Linux operating system, Dual-core 32-bit CPU and razor-sharp resolution. Now also with HDMI CEC support. The box is characterized by powerful hardware and a wide range of entertainment options. It supports all common functions that a modern multimedia box must have.

Hardware: the technology under the hood of the OCTAGON SX87 WL HD H.265 S2+IP
The engine room of the SX87 WL HD contains the latest hardware, with which almost all your multimedia requirements can be met. A Hisilicon 32-bit processor is installed as well as a multi-core graphics processor. This equipment not only ensures smooth playback of your multimedia content, but also fast boot times and fast navigation within the multilingual menus.

Full HD resolution H.265 HEC 1080P
With the OCTAGON SX87 WL HD H.265 S2+IP receiver you can enjoy your content in razor-sharp FHD resolution at 60 frames per second with 1920 x 1080 pixels. The SX87 WL HD decodes the content in the HEVC/H.265 standard, which helps to protect your bandwidth, among other things. The OCTAGON SX887 WL HD H.265 IP supports other standards such as MPEG2, H.264 and QPSK, 8PSK, 16APSK & 32APSK, as well as almost all video, audio and image formats.

Entertainment functions and other features of the small S2+ multimedia box
The OCTAGON SX87 WL comes with the extremely popular and easy-to-use Linux operating system. This allows you to benefit from the possibility of constantly expanding the entertainment offer. Numerous free apps such as YouTube, media libraries and numerous popular media players are available for this purpose. There are almost no limits to entertainment enjoyment and you will get your money's worth as a multimedia, series or film fan!

Variety of interfaces and connectivity
OCTAGON has given the SX87 WL HD H.265 S2+IP the most common interfaces and thus ensured a high level of connectivity for the multimedia box. There is a USB port on both sides of the S2+Multimedia box. On the back of the SX87 WL HD H.265 S2+IP you will also find an HDMI 1.4b connection, an S/PDIF interface, an Ethernet LAN connection and a DVB-S2 satellite tuner. An integrated card reader and a connection for the included external IR receiver are also installed.

Main features:
- ARM Cortex-A7 dual processor
- GX6613H2 GX-National
- Dual core 32-bit (2x 800MHz) 3000 DMIPS
- Multi-core high performance GPU
- Flash memory 128MB
- RAM 256MB DDR3
- Fast boot time of 15 seconds
- LAN Ethernet ( 100Mbps)
- 4-digit 7-segment display
- card reader + hardware blind scan (blind search)
- DVB-S2 tuner + multistream support
- HDMI 1.4b - HDCP1.4
- USB 2.0
- built-in WiFi module (150Mbit WiFi built-in)
- infrared -Hidden mount receiver
- HDMI CEC support
- Learnable multifunction remote control

Properties & functions:
- Linux OS operating system
- Resolution: FHD 1080P H.265 HEVC (1920 x 1080)
- Customer-specific extensions and logo support
- Internet Radio & YouTube
- Media libraries of the public broadcasters
- USB 2.0 connection
- User-friendly OSD interface
- WebIF & FTP access
- Card reader
- Recording & TimeShift
- Network 10/100Mbit LAN
- Built-in WiFi (internal)
- 3G modem support via USB port
- DLNA player (DMS, DMR) & built-in Media Player
- Playback of M3U playlists
- iOS and Android app (.apk) remote control & web browser (WebIF)
- Unicable & FastScan support
- DiSEqC 1.0, 1.1, 1.2 and USALS support
- EPG - Electronic program guide
- High resolution OSD UI user interface
- 4x programmable buttons on the remote control
- Direct buttons for WebTV, VOD and YouTube
- Subtitles & Teletext (Videotext) Support
- 0.5W Standby
- Dimensions (LxDxH) 125 x 95 x 25mm

- LED display (red / green)
- 4-digit 7-segment display
- IR sensor (infrared receiver)

- DVB-S2 tuner LNB input
- digital audio socket (S/PDIF)
- AV - audio video socket - jack to RCA
- HDMI 1.4b output
- network 10/100Mbit connection
- DC-12V power supply
- CA card reader

Side (left):
- USB 2.0 port
- LED/IR (external display or IR infrared receiver) connection
- Recovery (RESET) button for maintenance & service

Scope of delivery:
- Receiver OCTAGON SX87 WL HD H.265 S2+IP
- Learnable remote control
- Power supply adapter
- HDMI cable
- IR infrared receiver
- Operating instructions (German & English)
- 2 x batteries

Tuner & Demodulator:
- RDA5815m & S2 GX1133

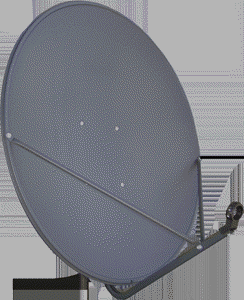

GEOSATpro 90CM Offset Satellite Dish

Antenna Size 1.2 Meter (48 Inches)
Offset Angle 27.3 deg.
Aperture Efficiency 80%
Horizontal Axis 120 cm (47.24 in)
Vertical Axis 135 cm (53.15 in)
Assembled Weight 12.25 kg (27 lbs)
Gain @ 12.5 GHz 43dB
Focal Length 60 cm (23.62 in)
F/D Ratio .5
Mount Type U-Bolt Az / El with Fine Tuning Adjustment
Azimuth Ajustment 360 deg.
Elevation Adjustment 15 - 90 deg.
Mast Diameter Minimum: 55mm (2.16"),  Maximum 76 mm (3")
Operating Temperature -40 C - +60 C
Operational Wind Speed 90 km/H (56 mph)
Survival Wind Speed 180 km/H (112 mph)
Finish Texture Polyester Powder Coating
Material Gavanized Steel
LNB Mount Type Universal 40 mm / 23 mm clamp
Color Grey

Item # GLOBAL STAR SYS 150 - $269.00 Includes Shipping
Within the 48 Cont. United States

Includes SX87 WL Octagon Satellite Receiver
PLL321S-2 DMSI Universal Ku-Band LNBF
90CM GEOSATpro Offset Satellite Dish
Installation Kit.

Signal Meter SF95 for $14.95 - This can be helpful in aiming in the dish to locate the satellited.

Ku-Band Dual Outlet LNBF Upgrade, instead of Single Outlet - Item # KSC322-2 DMSI - $10.00

You can follow this link for a complete listing of Both TV and Radio Channels on Galaxy 19: http://www.lyngsat.com/galaxy19.html
You will need to cursor down about 1/2 way on the page to where the frequencies start at 11700.
You will also need to go to the bottom of the page to view the different Color Codes and what they mean. You will be able to receive the "Digital Clear" channels.
