SOLD OUT

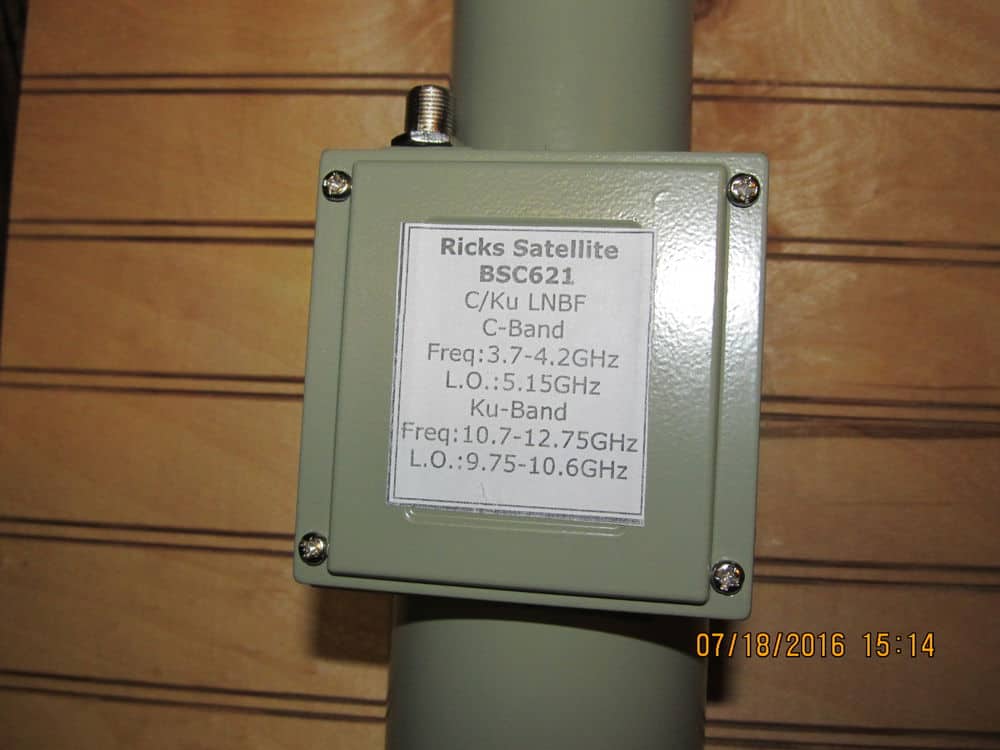

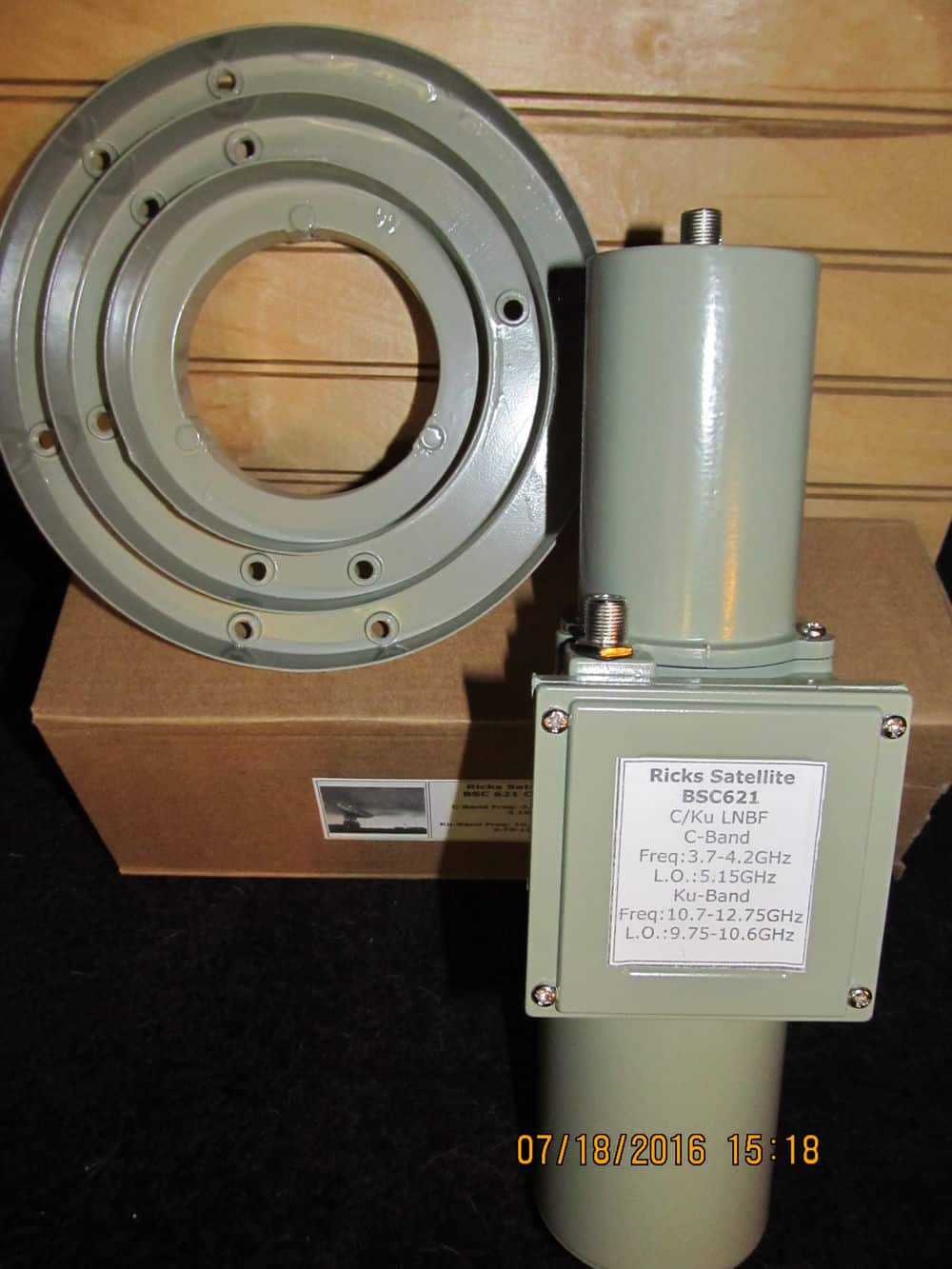

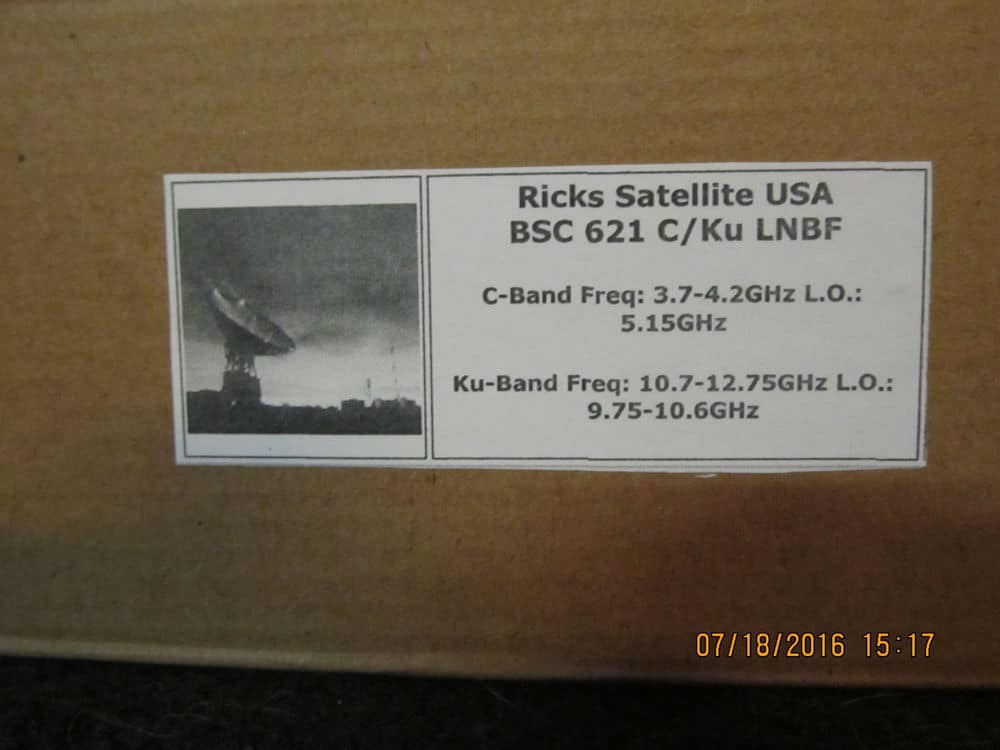

Ricks Satellite BSC621 - C/Ku-Band Digital LNBF - $47.95

$57.95 Includes Shipping within the 48 Cont. United States
Actual price is 47.95 plus 10.00 Shipping and Handling

Installation Instructions - Please Read Before Purchasing

This unit can receive Both C and Ku-Band Satellite Signals and also receive both Horizontal and Vertical Polarities.

$57.95 Includes Shipping within the 48 Cont. United States
Actual price is 47.95 plus 10.00 Shipping and Handling

This Unit Does NOT have a Built In DiSEqC Switch
Click Below to Add a DMSI 4 Way Weather Proof DiSEqC Switch for 8.00.
No Additional Shipping

Specifications of C/KU Band LNBF

Input Frequency: C Band: 3.4 - 4.2GHz

                            Ku band: 10.7-12.75GHz

L.O. Frequency: C Band: 5150MHz

                           Ku band 9.75/10.6GHz

Output Frequency: C Band: 950 to 1750 MHz

                               Ku band: 950-2000MHz

L.O. Leakage Input Port: 45dBm

L.O. Stability: ±2MHz (-40centigrade to +70centigrade)

Noise Figure): C band : 13°K typ

                        KU band: 0.2db

Conversion Gain: C band: 65dB (min)

                            Ku band: 60db (min)

Gain Flatness: ±1 dBm (max)

Input VSWR: 2.5:1(max)

Output VSWR: 2.0:1(max)

SOLD OUT

Ricks Satellite BSC621 - C/Ku-Band Digital LNBF - $47.95

$57.95 Includes Shipping within the 48 Cont. United States
Actual price is 47.95 plus 10.00 Shipping and Handling

This Unit Does NOT have a Built In DiSEqC Switch
Click Below to Add a DMSI 4 Way Weather Proof DiSEqC Switch for 8.00.
No Additional Shipping

Installation Instructions - Please Read Before Purchasing
