  OCTAGON SF8008 SUPREME 4K UHD E2 DVB-S2X TWIN (DUAL OS) Satellite Receiver With Multi-Boot

"OCTAGON"

SF8008 SUPREME 4K UHD E2 DVB-S2X TWIN (DUAL OS) Satellite Receiver With Multi-Boot

The impressive success story of the SF8008 models forms the basis for the latest innovations in the Octagon Supreme series.

We are proud to present the Octagon SF8008 SUPREME, which brings with it a world first - the M.2 interface for the internal integration of M.2 hard drives.

The receiver with Dual OS meets all the requirements of a multimedia device and now opens up even more possibilities.

By using a new tuner and demodulator, the already high quality was further improved. The Supreme model sets new standards with an advanced tuner and demodulator for optimized reception, the integration of an M.2 interface for internal hard drives, built-in dual band WiFi (2.4/5GHz) with up to 1200 Mbps and Bluetooth 5.1 - a groundbreaking combination of performance and connectivity.

The Octagon SF8008 SUPREME TWIN offers two tuner options with the standards 2 x DVB-S2X. With a USB 3.0 port, a Gigabit LAN interface and H.265 video decoding, it enables a comprehensive 4K experience. Discover the new 4K feeling with the Octagon SF8008 SUPREME Twin.

The Ocatgon SF8008 SUPREME 4K UHD receiver has two integrated DVB-S2X satellite tuners. With impressive performance (15,000 DMIPS) and lightning-fast switching times, it offers an outstanding user experience.

(Click on Above Pictures for Larger View)

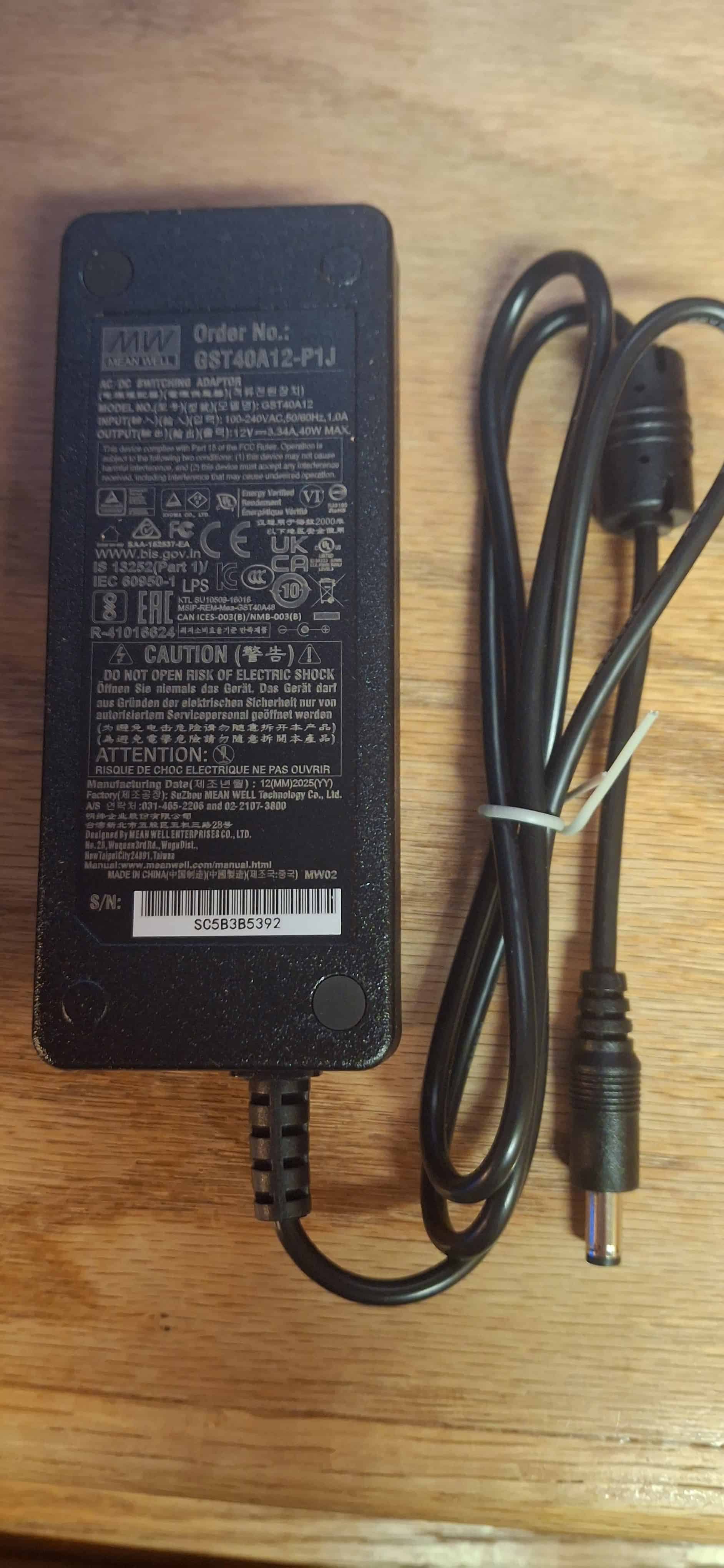

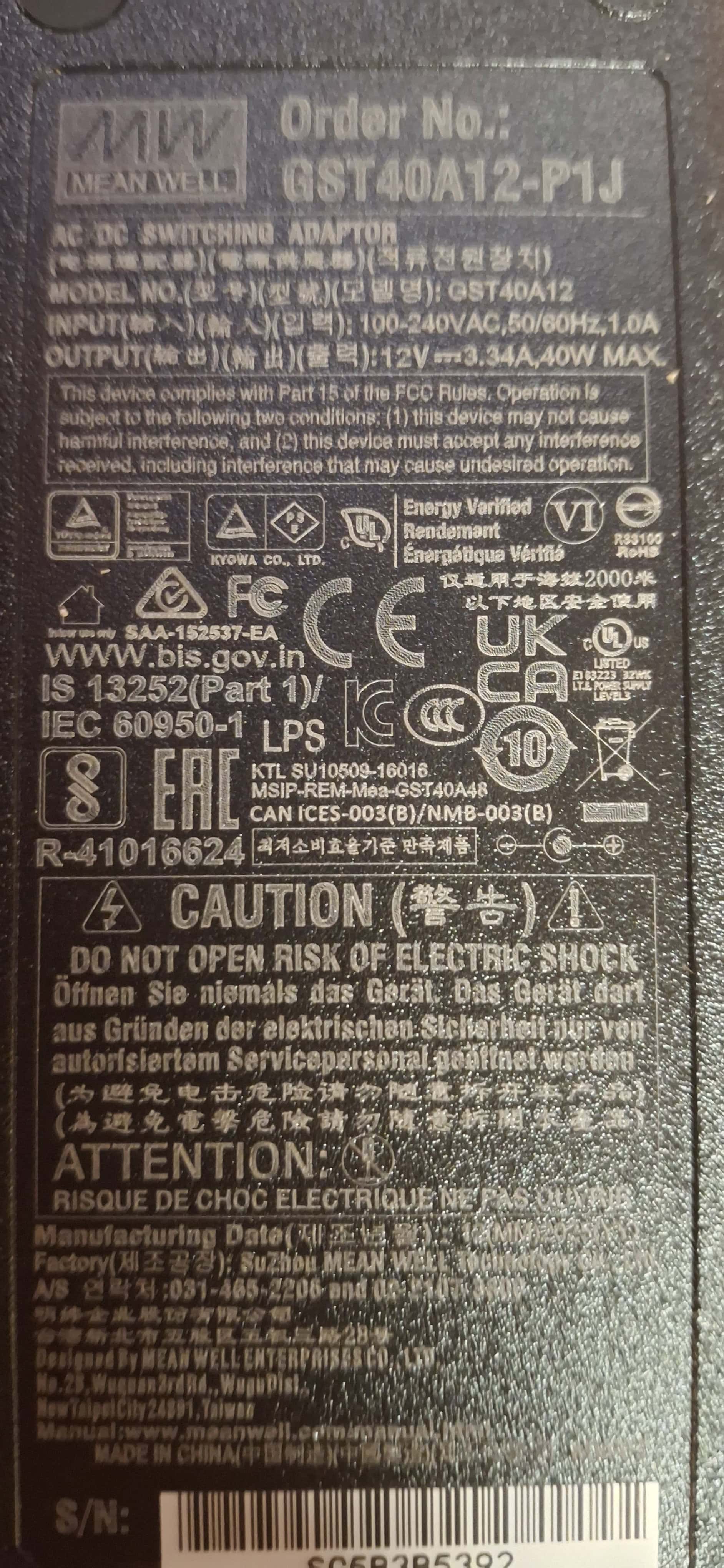

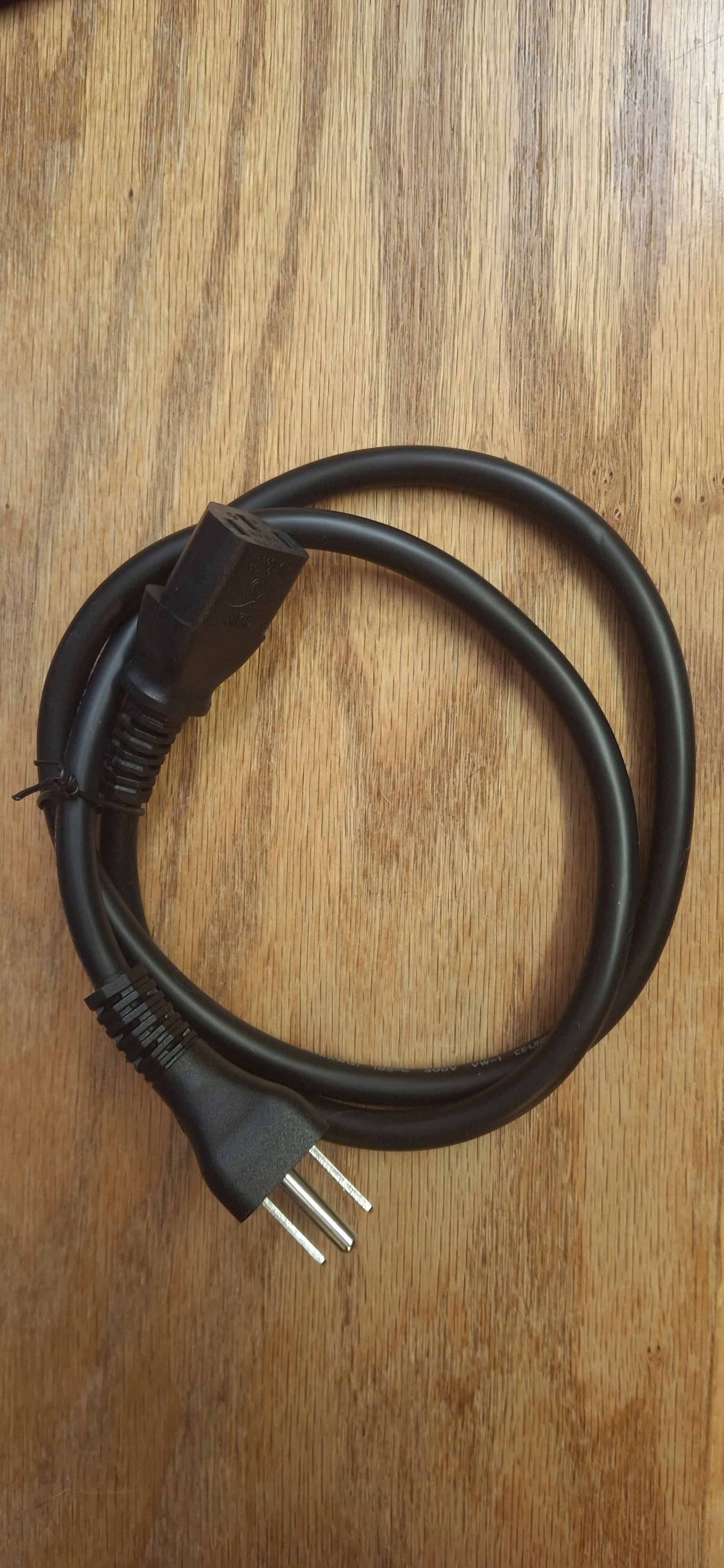

Receiver / Power Supply comes with US Plug Adapter

$189.00 Plus $15.00 Shipping
Within the 48 Cont. United States

$204.00 Includes Shipping Within the 48 Cont. United States


"The SF8008 Octagon Receivers Now Comes Pre Loaded with MULTI-BOOT!"

This allows the user to Install up to 4 Different Versions of Software and Pick the Version that you want the receiver to boot up to.

We Install Open ATV Enigma 2 software on Slot 1 and OS Define software on Slot 2, leaving Slot 3 and 4 open. Open ATV is one of many different Enigma 2 operating software that is available for the SF8008. OS Define is the same software that is used in the SX87 and SX88 Octagon Models and it is an operating system that is much easier to learn and use. It is more along the lines of operating software used in most basic FTA receivers for several years.

With the Option of Multi-Boot and OS Define Operating Software (Easy Software), now even the most novice user cab=n use the Best Receiver that we have to offer.

Please Note, that when using the OS Define Operating Software on the SF8008 DUAL Tuner model, the receiver thinks it is now an SX88 model, which only has 1 Tuner. So while running OS Define, you will not have access to Tuner B. When using any of the Enigman 2 Operating Software, you have full access to Both Tuner A and B.

The receiver can also be connected to your network and you take the IP Address of the SF8008 and open up a Broswer on your computer and type in the receiver IP address and it will open up a Webif Interface, allowing you to run the receiver from your computer. If you have a fast enough computer with enough memory, you can scan in the ABC or CBS 4:2:2 MPEG4 H.264 and H.265 Network feeds and take the IP address assigned to the channel when it was scanned and then open up VLC player and input the channel IP address and VLC can play them, as it has the proper codecs. If you have an HDMI output on your computer, then you can send it out to your TV Set.

Modern entertainment & numerous features

The Octagon SF8008 4K UHD supports a variety of images, allows the download of additional plugins and offers HDR, HLG and H.265 decoding. With Gigabit LAN (1000Mbps) and permanently installed WIFI module, it ensures a quick connection to high-resolution content. Two WiFi antennas are also available. With an M.2 slot, USB 3.0, USB 2.0, a MicroSD slot and a card reader, the receiver offers sufficient options for playing content from external storage media. Additional connections include HDMI 2.0, AV (Audio & Video) and an S/PDIF output for digital audio signals. In standby, the power consumption is less than 0.5 watts.

Versatile:
The receiver offers a PVR recording function, time-shifted television via internal M.2 HDD hard drive or external USB stick, access to YouTube, WiFi, media player & library, internet functions, plug-in download and is for use with Suitable for camping and more.

Extensive features:
The receiver has dual OS with E2 Linux and Define OS, 2xDVB-S2X satellite tuners, recording function and supports customizable skin user interface as well as many free plugins (extensions and apps) under the E2 Linux OS.

User-friendly:
The receiver offers an intuitive multilingual menu, extended EPG (Electronic Program Guide), numerous images and skins for download, satellite-to-IP TV optimization and support for E2 Multiroom Client.

Future-proof:
The receiver is equipped with a 4K H.265 HEVC UHD processor, 8GB eMMC Flash/1GB DDR DRAM, M.2 SSD slot, HDMI & USB with PVR function, LAN, Wi-Fi, AV via RCA and for satellite -to-IP TV optimized.

Metal housing & solid workmanship

KEY FEATURES:
- Dual OS: E2 Linux & Define OS Linux
- 4K H.265 HEVC UHD processor (3840 x 2160)
- Hisilicon Hi3798MV200 Huawei
- Quad Core 64Bit (4x 1.6GHz) 15000 DMIPS
- Flash 8GB eMMC
- RAM 1GB DDR4
- M .2 slot (M.2 SSD: M KEY – PCIE NVME)
– Gigabit LAN Ethernet (1000Mbps) network interface
– permanently installed 2.4/5G dual-band WiFi (WLAN) up to 1200Mbps, 2x WiFi antennas
– 4-digit 7- Segment Display
- CA card reader
- Hardware BlindScan (blind search)
- 2 x DVB-S2X (Twin Tuner) + Multistream Support
- Multiroom Client & Sat to IP Client Support
- HDMI 2.0a & USB 3.0
- MicroSD slot
- HDMI CEC Support
- Learnable remote control

SPECIAL FEATURES:
– DUAL OS: E2 Linux OS operating system & OCTAGON Define Linux OS
– 2x DVB-S2X 4K UHD & Multistream (T2-MI direct input)
– Symbol rates of 100 – 80,000 SR
– PIP HD & UHD (Picture in Picture)
– HDR 10bit & HLG
– Multi Transcoding & Multiroom
– Sat>IP Client & V-tuner USB Dongle
– Blindscan (blind search)
– Media libraries of public broadcasters
– HW Multiboot
– ffmpeq HW Playback Support
– 2160P Media Playback H.264 and H. 265
- OTA Updates
- DiSEqC 1.0/1.1/1.2, USALS, Unicable, Fast-Scan
- PVR recordings (*optional)
- 12V connection (also suitable as a camping receiver for motorhomes or caravans. 12V car adapter not included)
- 0.5 W standby

FRONT SIDE:
– Power button on/off button
– 4-digit 7-segment display
– LED display (red / blue)
– IR sensor (infrared receiver)

BACK PANEL:
- 2x H.265 4K UHD DVB-S2X tuner LNB input
- Dolby S-PDIF
- AV - Audio video socket - Jack to RCA
- RS-232 socket (maintenance & service)
- WiFi 2x WLAN antennas
- HDMI 2.0a Output
– USB 2.0 port
– Network Gigabit LAN (1000Mbps)
– MicroSD slot
– Recovery (Reset) button
– DC-12V power supply
– Power switch on/off

RIGHT SIDE:
– USB 3.0 port
– Card reader (CA CARD)

INSIDE:
– M.2 slot for internal SSD hard drive (M.2 SSD: M KEY – PCIE NVME)

SCOPE OF DELIVERY:
– Receiver OCTAGON SF8008 4K SUPREME TWIN

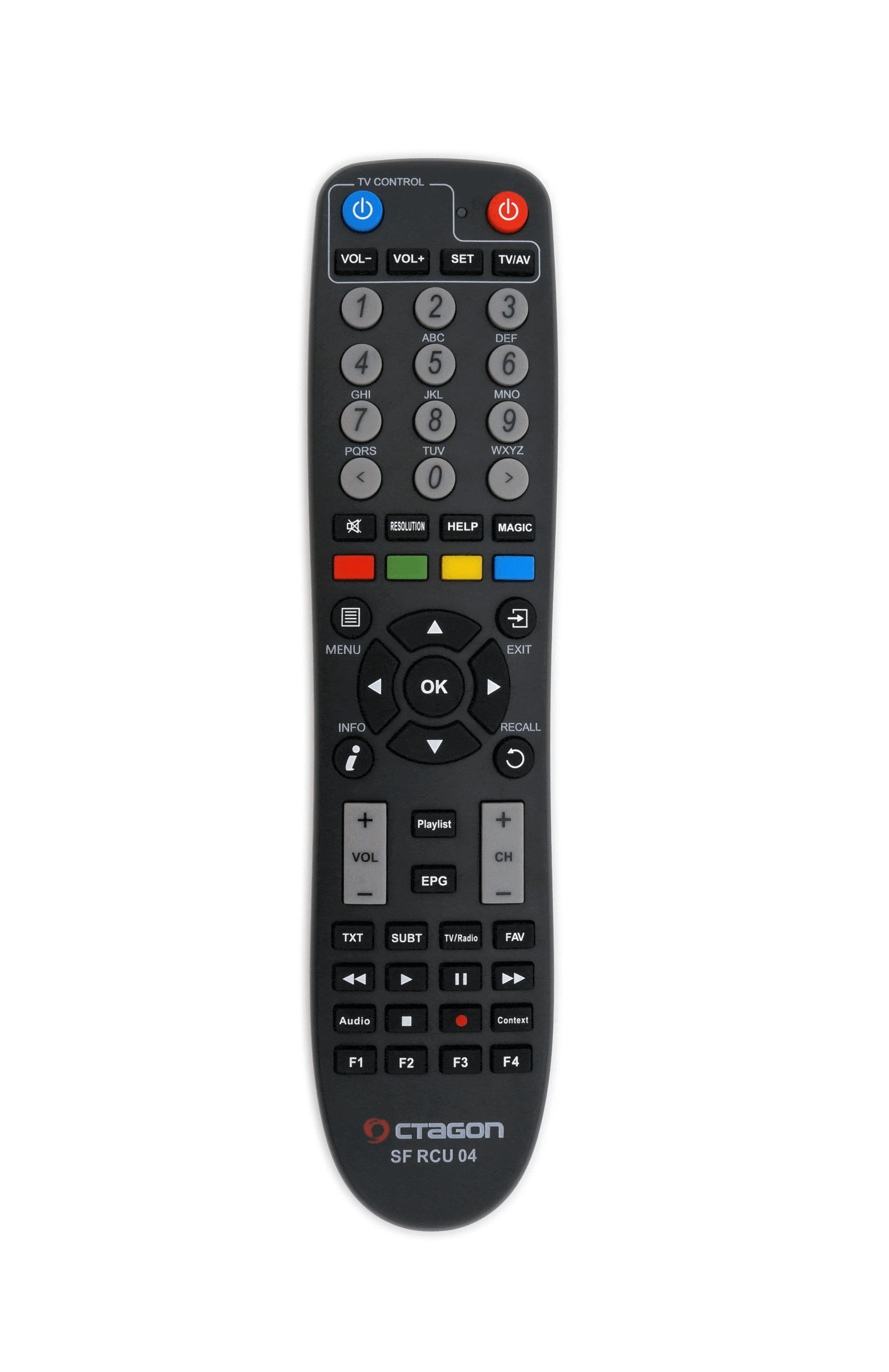

– Learnable remote control
– 2 x AAA batteries
– Operating instructions (German & English)
– HDMI cable
– Power supply (power supply)

TUNER & DEMODULATOR:
– 2 x DVB-S2X: Availink AVL62X1 & RDA5815m

OTHER:
- Dimensions (LxDxH) 220mm x 125mm x 40mm
- Power supply (power supply) DC12V-3A


"OCTAGON"

SF8008 SUPREME 4K UHD E2 DVB-S2X TWIN (DUAL OS) Satellite Receiver With Multi-Boot

$189.00 Plus $15.00 Shipping
Within the 48 Cont. United States

$204.00 Includes Shipping Within the 48 Cont. United States


IMPORTANT
We do not provide or condone the use of third party software. Using third party software may be illegal and will void product warranty. Do not email or call us asking about DN, DTV, etc. Our satellite receivers are designed and intended for 100% legal FTA use only. We will refuse sale to anyone whom we believe intends to use any of our products illegally or sell our products for any other type illegal use.
