C & Ku-Band Satellite Dishes
Shipping cost shown are for within the 48 cont. United States
Ku-Band Dishes Picture & Part # COST

DS2076 Winegard
76 CM Satellite Dish

Made in the USA!

Mounting Type: Ground, Pole & Wall Mount
Adjustment Type: AZ/EL

Comes with Pole and Pedestal Base
Can be mounted to a Deck, Side of the House or on the Roof.

DS2076 WINEGARD

76CM Satellite Dish

Made in the USA!

DS2076 Winegard Satellite Dish

$ 55.99
Plus $28.00 Shipping
Within the 48 Cont. United States

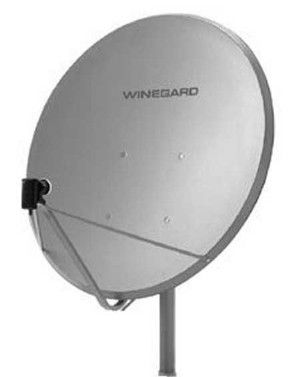

DS3100 Winegard
100CM Satellite Dish

Made in the USA!

This dish uses a standard feed arm and
has a AZ/EL mount, made for pole mounts.

LNB and wall mount Not Included
LNBF clamp size 23, 25, 35, 40, 50 mm
Requires a 2.25 - 2.62 in. OD mount pole

Mechanical
Optics Offset
Effective aperture 100 cm (39.4 in.)
Antenna height 114 cm (44.8 in.)
Antenna width 105 cm (41.3 in.)
Galvanized steel 18 ga.
Antenna weight 10 Kg. (22 lbs.)
F/D .59
Offset angle 24
Elevation range 1 to 90
Focal distance 59 cm (23.11 in.)
Surface accuracy .020 - .024 in. ave.
Mounting options Universal, wall/roof
Feedhorn (clamp size 25, 35, 40, 50 mm)
Mount Pole (not included) 2.25 - 2.62 in. OD
Electrical
Frequency range 10.95-12.75 GHz
Gain at mid-band
11.2 12.1 12.6
39.83 dBi 40.50 dBi 40.85 dBi
Aperture efficiency 73%
Cross polarization (on axis) -21 dB
Beamwidth at -3 dB 1.8*
Beamwidth at -10 dB 3.0*

DS3100 Winegard

100CM Satellite Dish

Made in the USA!

Does Not come with LNBF or Pole

DS3100 Winegard Satellite Dish

$ 119.99
Plus $105.00 Shipping
Within the 48 Cont. United States

DS3100 Winegard
100CM Satellite Dish

Made in the USA!

DS3101 Winegard
100CM Satellite Dish With
Heavy Duty Wall Mount

Made in the USA!

This is the same dish as pictured above,
the DS3100, but comes with a Heavy Duty
DS5200 Winegard Wall Mount

This dish uses a standard feed arm and
has a AZ/EL mount.

LNBF clamp size 23, 25, 35, 40, 50 mm

Mechanical
Optics Offset
Effective aperture 100 cm (39.4 in.)
Antenna height 114 cm (44.8 in.)
Antenna width 105 cm (41.3 in.)
Galvanized steel 18 ga.
Antenna weight 10 Kg. (22 lbs.)
F/D .59
Offset angle 24
Elevation range 1 to 90
Focal distance 59 cm (23.11 in.)
Surface accuracy .020 - .024 in. ave.
Mounting options Universal, wall/roof
Feedhorn (clamp size 25, 35, 40, 50 mm)
Mount Pole (not included) 2.25 - 2.62 in. OD
Electrical
Frequency range 10.95-12.75 GHz
Gain at mid-band
11.2 12.1 12.6
39.83 dBi 40.50 dBi 40.85 dBi
Aperture efficiency 73%
Cross polarization (on axis) -21 dB
Beamwidth at -3 dB 1.8*
Beamwidth at -10 dB 3.0*

DS3100 Winegard

100CM Satellite Dish

With DS5200 Heavy Duty Wall Mount

Made in the USA!

DS3101 Winegard Satellite Dish
With Heavy Duty Wall Mount

$ 159.99
Plus $145.00 Shipping
Within the 48 Cont. United States

DS3101 Winegard Satellite Dish
With DS5200 Heavy Duty Wall Mount

Made in the USA!

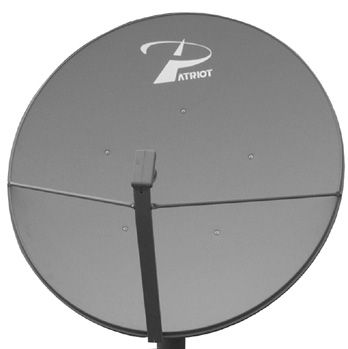

Patriot 120CM Satellite Dish
Does Not come with Pole or LNBF.

Specifications

Type Offset
Diameter 120 cm
Gain Ku 11.7 GHz dBi 42.5
Aperture Efficiency 70% min.
3dB Beamwidth .97
Avg. 1st Side Lobe -23dB
Cross Polarization >30dB
VSWR Max. 1.3:1
Color Grey / Cool Grey
MOUNTING
Mounting Type Fix Mount, Pole Not Provided
Offset Angle 27.7
F/D .5
Operational Wind 40 MPH
Survival Wind 100 MPH
Operational Temperature -20 to 140 F
Rain Operational 1/2" / Hr
Survival 3" / Hr
Ice 1" Radial or 1/2" + 60 MPH Wind
Pole Diameter Acceptable 2 7/8" - 75 mm
PATRIOT 120CM

Picture shows a DSS LNBF.
Does Not come with Pole or LNBF.
Dish comes with a 40MM LNBF Clamp.

Patriot 120CM Satellite Dish

$ 169.00 Plus Shipping

Shipping in the Cont. US for $ 145.00 Via FEDEX

Total Price Including Shipping
$ 314.00

This dish has a Threaded Rod for the Elevation Adjustment and it
attaches just above the Top of the Sleeve on the back of the dish
and comes down to the back of the Sleeve mounting bracket,
so it will not work with a motor like the SG6100 as the top of the
sleeve is blocked. It can work with a motor like the HH120 STAB
that is designed to have the motor shaft go up into the bottom
of the dish sleeve. This is an Excellent Dish for Fixed Applications.

C/Ku Dishes FORTEC dish with Polar Mount COST
Specification

Value

REFLECTOR

Type Prime
Diameter 240 cm (8Ft)
Panels (sections) 6
Efficiency 70% min.
C – Band Gain @ 4.0 GHz 38.39 dB
KU – Band Gain @ 12.5 GHz 48.04 dB
F/D Ratio 0.38
Focus Length 915 mm (36")
Material Steel
Finish Polyester Powder Coating
Color Grey / Cool Grey
MOUNTING
Mounting Type Ground Mount
Elevation Angle Range 0 - 90
Azimuth 0 - 360
Material Steel
Finish Polyester Powder Coating
Color Grey / Cool Grey
Pole Diameter Acceptable 75 mm (3")
Net Weight 62.5 kg (137.5 lbs)
ENVIRONMENT
Operational Winds 25 m / sec
Survival Winds 40 m / sec
Ambient Temperature -40C ~ +60C
Relative Humidity 0 ~ 100 %
FORTEC 240 CM (7.83') Prime Focus
Fixed Mount Satellite Dish

FC08

This dish can be used for C & Ku Band.

Does not inclued Feed Horn, LNBF, LNB/s or Actuator Arm.

FORTEC 240 CM Prime Focus
Satellite Dish with Fixed Mount

$209.00

Shipping in the Cont. US for $169.00 Via FEDEX

Total Price Including Shipping
$ 378.00

Lock Down Bar Flat 24"   $ 29.95

A NOTE ABOUT DAMAGES IN SHIPMENT

Satellite dish freight orders are vulnerable to damages in transit. In order to file and collect on damage claims you must inspect your equipment upon delivery for exposed and or concealed damages. Please open all boxes and visually inspect for damage before signing the delivery ticket. If damage is found, you must make a notation on the delivery ticket specific to items damaged, and it should be signed by you and the delivery driver. Damages found after the fact cannot be verified and claims will be denied.
