STAB HH90 H to H Motorized Mount

HH90 STAB Motors - Direct from Italy

Motorize your Ku-Band dish and run it with a Receiver with DiSEqC 1.2 capabilities.

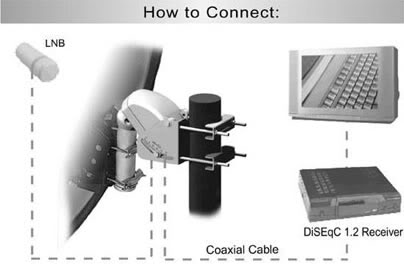

This unit works off of the single coax cable that is used to power the LNBF. This STAB Motor will let you move your
Ku-Band dish (Up to 95cm in size and Up to 22 lbs.) to different Satellites for MORE FREE TO AIR CHANNELS.

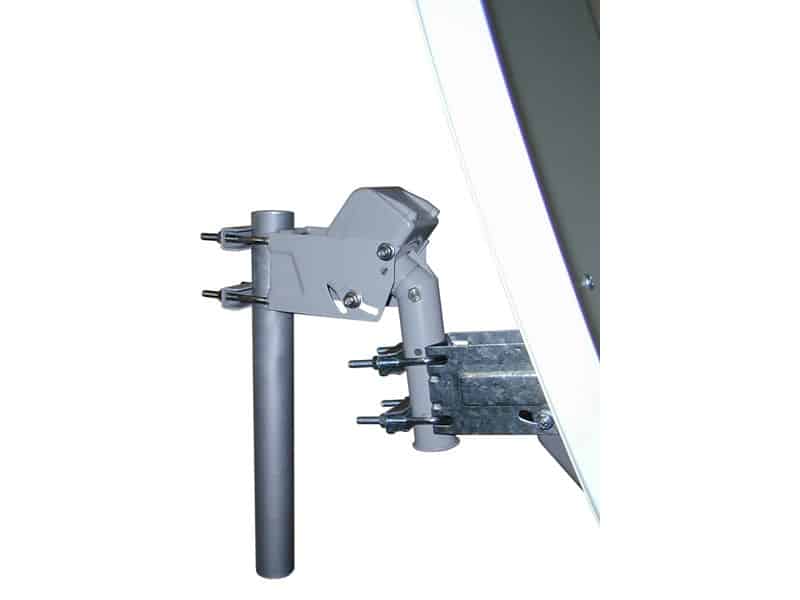

Horizon-to-Horizon STAB Motor for use with dishes up to 95cm in diameter.

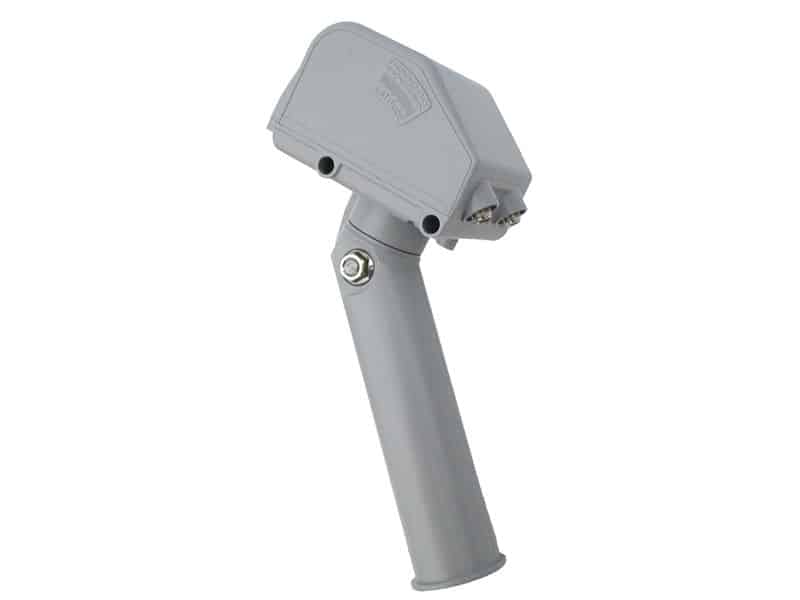

STAB HH90 Horizon to Horizon DiSEqC 1.2 Motorized Mount
$95.00 Plus $8.50 shipping in the Cont. 48 United States

Operating protocol DiSEqC 1.2, USALS
Maximum antenna diameter 95 cm (37")
Maximum antenna weight 10 Kg (22 lbs)
Pole support diameter Dia 35 to 68mm
Antenna support length 145 mm (5.5")
Antenna support diameter 42 mm (1 5/8")
Rotation angle 65
Rotation speed 2.4/s (18V);1.5/s (13V)
Operating power supply 13 / 18 Vdc
assorbimento in stand-by 40 mA
Consumption in stand-by mode 180 mA
Consumption in operating mode 350 mA
Operating temperature -40C +80C
Maximum relative humidity 100%
Programmable positions 49 satellites
Programmable positions USALS no limits
Preset positions 28 satellites
Connectors F Type
Connection Sat coaxial cable
Mechanical limits 72
Software programmable limits From 5 a 65
Fine tuning Impulse 0.1
Inclination on the pole From 10 a 70
Weight 2.6 Kg  (5.5 lbs)

DownLoad: MANUAL

STAB HH90 Horizon to Horizon DiSEqC 1.2 Motorized Mount
$95.00 Plus $8.50 shipping in the Cont. 48 United States
