DiSEqC POSITIONER TO MOVE AN ACTUATOR ARM
Allows you to use your MPEG2 Receiver with DiSEqC 1.0 or 1.2 commands to move a 36Volt DC actuator arm

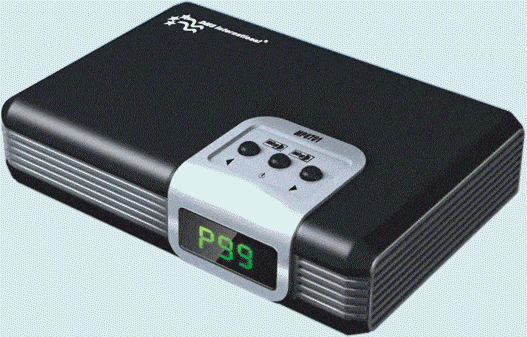

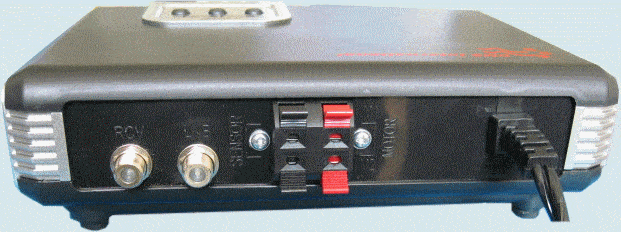

V-Box 7 Dish Mover with Remote Control
$57.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is 47.00 plus 10.00 Shipping and Handling

Our newest V Box.   Compatible with DiSEqC 1.0 /1.2 Receiver or Any Receiver.  Compatible with any Actuator or H-H Mount.  3 Digit LED Display.  99 Satellite Positions.  Fine-tune EAST / WEST Buttons.  Comes with Remote Control.  Overload Protection ( Auto-recovery ).  Anti-Noise Design.  Short circuit and over load protection.  Auto turn-off function.  Re-synchronize Function.  Includes a 22 key remote control.

Input Voltage	110 VAC 60 Hz or 220 VAC 50 Hz (choose at time of purchase) 13/18 VDC (F Type via Coaxial Cable)
Output Voltage	13/18 VDC (F Type / According to input) 36 VDC via motor cable
Maximum Current	2.2A
Power Consumption	Standby: 5W Maximum: 70W
Position Memories	99 / 8 / 4
Protocol	DiSEqC 1.2/1.0
Remote Control	IR
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Dimensions (WxHxD)	225x160x75mm³ (Net) 275x205x83mm³ (Gross)
Weight	1.6 Kg (Net) 1.7 Kg (Gross)

*Note: Available in 110vac 60Hz or 220vac 50Hz.

V-Box 7 Dish Mover with Remote Control
$57.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is 47.00 plus 10.00 Shipping and Handling
