DON'T MISS THE BACKHAULS!

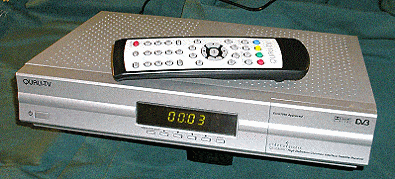

QUALI-TV QS1080IR or QS1080IRCI
LIMITED QUANTITY NOW BACK
IN STOCK!
SATELLITE TV FANS, YOU NEED THIS
RECEIVER!!!
Start Getting the Feeds that you have been Missing!!!
RACING, FOOTBALL, BASKETBALL, HOCKEY, NETWORK FEEDS &
MORE!
Easy Hook Up, Basic Pre-Programed & Easy to Use!
Check out some of the Free To Air
channels that you can pick up using this receiver:
PBS HD - CBS HD - ABC HD - The Outdoor Channel HD - Movie
Central HD
Also check out all of the different types of Wildfeeds
& Backhauls that this receiver can pick up,
by checking all the feeds posted at my forum: Ricks
Satellite Wildfeed & Backhaul Forum
This receiver will do 4:2:0,
4:2:2, 4:2:0 High Definition and 4:2:2 High Definition
Spec
Sheet - Wiring Diagram
699.99 plus 15.00 shipping
in the 48 Cont. United States!
724.99 plus 15.00 shipping
in the 48 Cont. United States!
You do not need a High Definition
TV to be able to view the High Definition Feeds.
Comes with a 30 Day Warranty by
Replacement.
Add a C/Ku Band Slave Kit for
just $28.00
Slave Kit includes: 2 - PV23402 2 Way HF 1 Port
Passive Splitters, 2 Way DiSEqC Switch
and 5 - 4' RG 6 Coax Cables
| FEATURES: |
• Enable to Decode
QPSK Transmission |
| |
• HDTV and SDTV
Display Support |
| |
• Teletext |
| |
• AUX in for DVD/ VCD
Composite Input |
| |
• Aspect Ratio
Adjustment 4:3(16:9 Crop) 4:3 (16:9 Letter Box),
16:9 (4:3 Pillar Box) |
| |
• Video/Audio
Connectivity Including YPbPr, DVI, RGBHV,
Composite, SPDIF, VCR / DVD SCART, TV SCART |
| |
• Output Format
1080i, 720P, 576P and 576i |
| |
• User-Friendly OSD
and Operation |
| |
• Favorite Channel
Selection |
| |
• S/W Upgradeable
Through RS-232 / OTA |
| |
•
Parental Guide and Rating Control |
| |
•
Picture in Picture (PIP) Support |
| |
•
Electronic Program Guide (EPG) |
| |
•
DisEqc 1.0 |
| |
•
Dolby Digital, MPEG Layer I&II |
| General Specifications |
• Transmission System
QPSK |
| |
• Input Frequency
950~2150 Mhz |
| |
• Tuner Input
F-Female |
| |
• Chipset Broadcom®
BCM7035 |
| |
• Flash 2 MB |
| |
• SDRAM 64 MB |
| |
• EEPROM 32 KB |
| |
• Video Decoder MPEG
2 MP@HL
, MP@ML,
4:2:2 |
| |
• Audio Decoder Dolby
Digital, MPEG layer I & II |
| |
• Component Video
(YPbPr) RCA |
| |
•
Composite Video RCA |
| |
•
Audio RCA, Optical(SPDIF) |
| |
•
Serial Data Port RS- 232 |
| |
•
Video Output YPbPr/Composite/RGBHV/DVI/RSCART |
| |
•
Voltage Input: 100~240 VAC,50 - 60Hz |
| |
Dimensions
360 (W) * 250 (L) * 65 (H) mm |
| |
Smart
Card Slot *1 |
A few things about this
receiver....
This unit is imported from the
Netherlands and is a Great Unit for the Price. Just
last year the only other option was to get an
unfriendly commercial rack mount unit for around
2,500.00 and yet another unit to receive High
Definition feeds for around another 1,000.00.
The receiver has a 1 Year
Warranty. I have been selling this unit since March
2005.
The receiver will not allow
you to Edit or Rename Satellites or Channels. You
cannot do manual input of PIDs. All of the North
American Satellite names are not in the memory, but I
do not find this to be an issue, as the unit has 4
universal names, Satellite 1, 2, 3 and 4 that can be
used. I set up the receiver with Satellite 1 for
C-Band and Satellite 2 for Ku-Band.
Most of the High Definition
feeds on satellite are in 4:2:0 HD and the receiver
plays these feeds excellently. There are some 4:2:2
HD feeds and the receiver puts a greenish flashing
horizontal line across the bottom of the screen,
about 1 inch tall. On some HD TV sets, they have a
Zoom feature and you can zoom in enough so you do not
see the line. Quali-TV is aware of this issue and has
the data stream, but as of yet, they have not
released a software version that will fix it.
I hook the receivers up first
and make sure they work. I also load the latest
software into the receiver and do a basic Pre-Program
of the unit to make it easy to set up and use
quickly!
Overall, I still find this to
be an EXCELLENT Receiver and am Very Happy to Have
and Use it myself and to be able to offer it to my
Friends and Customers at a Great Price!
Rick Caylor
Ricks Satellite
www.quali-tv.com
FAQ
about the Quali-TV
Frequently Asked
Questions (FAQ) With Answers
LIMITED QUANTITY NOW BACK IN
STOCK!
Check out some of the Free To Air
channels that you can pick up using this receiver:
PBS HD - CBS HD - ABC HD - The Outdoor Channel HD
Also check out all of the different types of Wildfeeds
& Backhauls that this receiver can pick up,
by checking all the feeds posted at my forum: Ricks
Satellite Wildfeed & Backhaul Forum
QUALI-TV
QS1080IR or QS1080IRCI
699.99
plus 15.00 shipping
in the 48
Cont. United States!
724.99
plus 15.00 shipping
in the 48
Cont. United States!
Add a C/Ku Band Slave Kit for
just $28.00
Slave Kit includes: 2 - PV23402 2 Way HF 1 Port
Passive Splitters, 2 Way DiSEqC Switch
and 5 - 4' RG 6 Coax Cables
Replacement Power Supply
Circuit Board for either of the 2 units.
Either the QS1080IR or the QS1080IRCI Models.
|
